Dehumidifying Air Handlers

Temperature and humidity control in the classroom are challenging HVAC engineering problems in the extreme conditions of the southern states. Occupant discomfort, inadequate ventilation, mold growth and equipment noise are significant issues.

With over 50 years experience, Temspec meets these challenges exceptionally well with our dual coil /dual fan design. The outdoor air passes through a pre-treatment coil, dedicated to the dehumidification of outside air before it mixes with the return air while a second coil conditions the mixed air.

A wide selection of options are available including special salt protection coatings on coils, electric or hot water heating, chilled water or split DX cooling, top free discharge plenums and installation accessories.

Dehumidifying Air Handlers

Temspec’s dual coil/dual fan design is an exceptional solution to the challenging HVAC engineering problems in the extreme humidity of southern states.

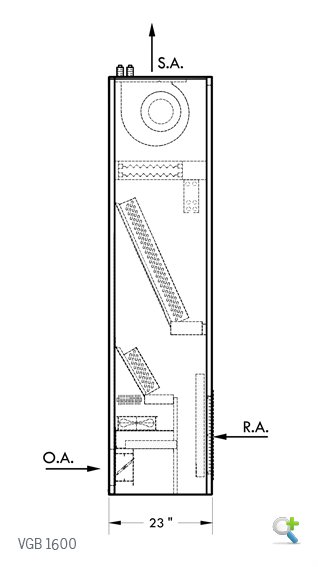

Model VGB

  • Vertical dual coil air handler
  • Finished cabinet
  • Ducted (free discharge plenum available)
  • S/A Nom. 1600 cfm
  • O/A Nom. 500 cfm

Model HGB

  • Horizontal dual coil ceiling mount
  • Finished cabinet
  • Ducted
  • S/A Nom. 1600 cfm
  • O/A Nom. 500 cfm

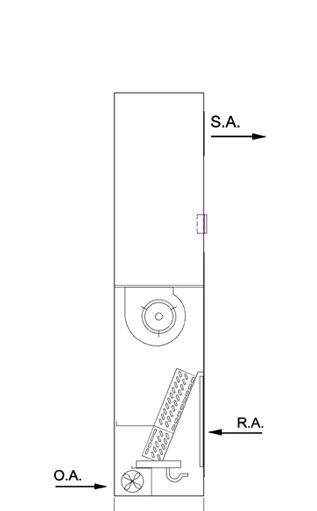

Model TLG

  • Vertical dual coil air handler
  • Finished or concealed cabinet
  • Ducted or free discharge
  • S/A Nom. 350 – 1200 cfm
  • O/A Nom. 50 cfm
